Back fold control

Reduce the minimal distance between the blanks

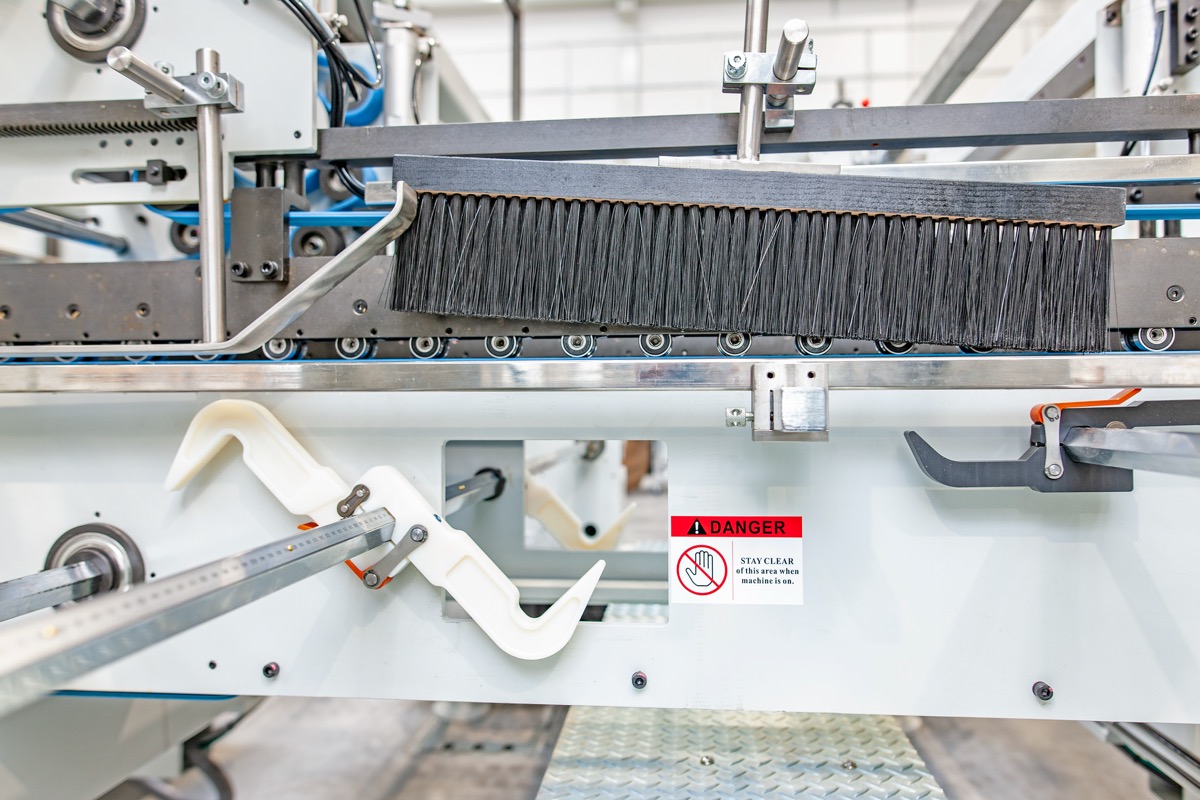

Servo System for back folding
The servo driven Back-folding makes it possible to reduce the minimal distance between the blanks. Because of the minimal distance between the blanks it will result in more blanks per meter, this results in more output at a relative low belt speed

Description of servo system for back folding
The servo system contains the following parts:
Main cabinet.
Operator terminal with touch screen
Servo motors with special gearboxes
Set photocells en sensors with the mounting brackets
Set reference encoder with the mounting bracket
Set cables en connectors
Mounting set servo motors
Software in English, Dutch and German
Schematics, parts list and operator manual in English

The servo system can be used within a temperature range of 0 to 40 ºC. Used drives have internal control and all are connected to the safety CPU in the Machine Control
